Model with no shadow *Fixed*

Postby DarkIceJack on Sat Feb 14, 2009 3:34 am

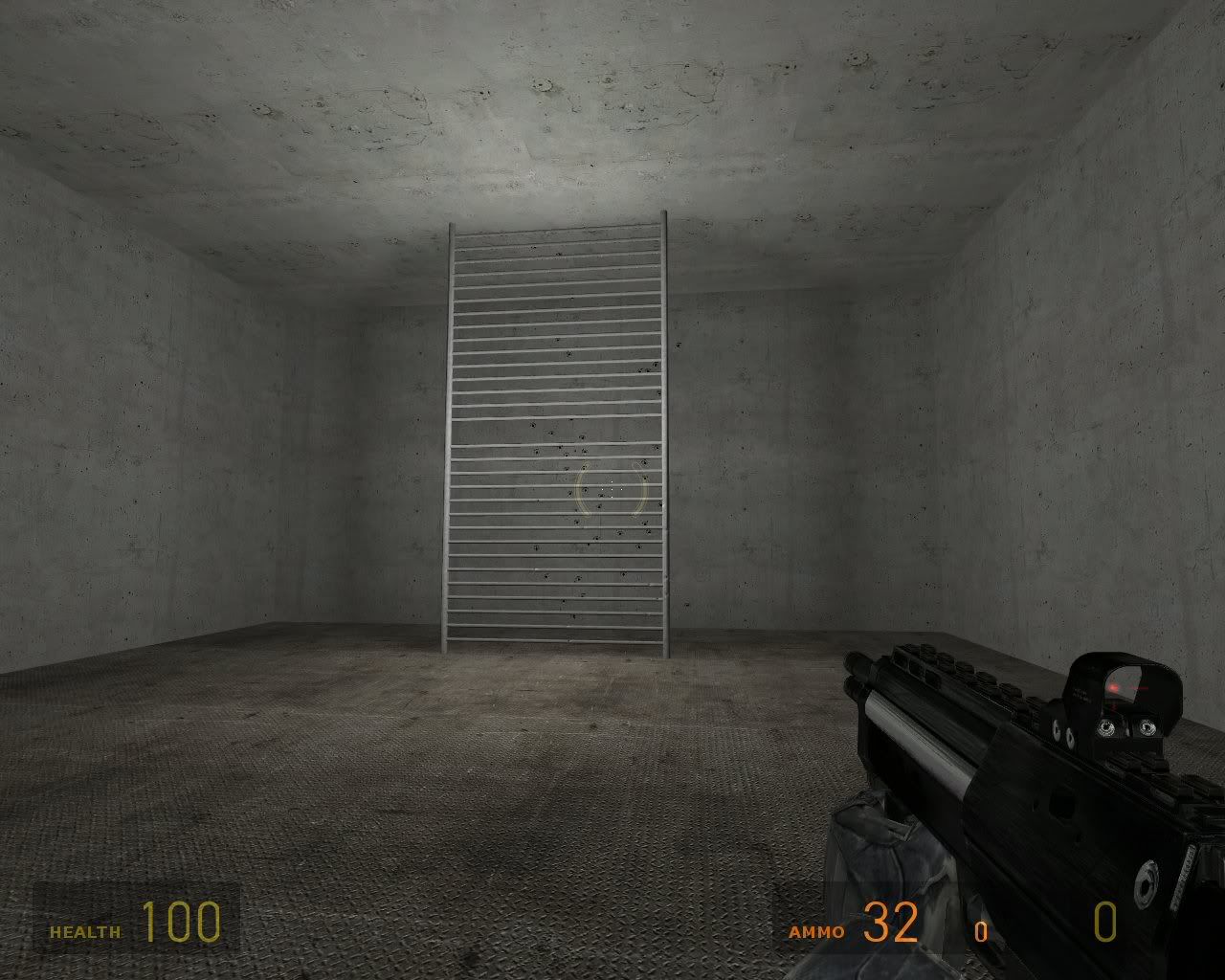

I have made a model of a metal security gate
But the problem is that there is no shadow being cast by the model, there is a light behind it, and the shadow option is turned on.

Just wanting to know how to fix this
Last edited by DarkIceJack on Sun Feb 15, 2009 4:02 am, edited 1 time in total.
Time is but a movement inside a stillness; as the hands of a clock seem to race against time
User avatar
DarkIceJack
Been Here A While
Been Here A While

Joined: Sat Nov 24, 2007 12:42 am
Location: Bluff NZ - The bottom of the World -

Re: Model with no shadow

Postby stoopdapoop on Sat Feb 14, 2009 3:44 am

I'm Brown
User avatar
stoopdapoop
Veteran
Veteran

Joined: Sun Aug 21, 2005 2:14 am
Location: Ann Arbor, MI

Re: Model with no shadow

Postby KommanderK on Sat Feb 14, 2009 4:36 am

Doesnt that only apply if its a texture? that vent looks like its all polys
User avatar
KommanderK
Regular
Regular

Joined: Mon Oct 29, 2007 5:35 am
Location: Chicago

Re: Model with no shadow

Postby stoopdapoop on Sat Feb 14, 2009 4:57 am

oh lol, you're right.


When you click on the compile button in the upper right, there should be a text box, just put "-staticproppolys" without the quotes and you should be set.
I'm Brown
User avatar
stoopdapoop
Veteran
Veteran

Joined: Sun Aug 21, 2005 2:14 am
Location: Ann Arbor, MI

Re: Model with no shadow

Postby DarkIceJack on Sat Feb 14, 2009 5:13 am

Not working
The prop is a dynamic prop and the map just ends up fullbright
Time is but a movement inside a stillness; as the hands of a clock seem to race against time
User avatar
DarkIceJack
Been Here A While
Been Here A While

Joined: Sat Nov 24, 2007 12:42 am
Location: Bluff NZ - The bottom of the World -

Re: Model with no shadow

Postby MayheM on Sat Feb 14, 2009 5:17 am

Well it is a bit of a pain but you could use block lights brushs and make the same layout of bars with that to make the shadow right...

The only other thing I can think of it lower the lightmap size on the floor where you want the shadow to be so you get a finer detailed shadow... that is actually your best bet...
User avatar
MayheM
Veteran
Veteran

Joined: Tue Oct 16, 2007 7:46 pm
Location: Lancaster SC

Re: Model with no shadow

Postby DarkIceJack on Sat Feb 14, 2009 10:39 am

Still no luck with getting the model to show shadows

Haven't tried with using block lights brushs but i think that would just look bad

Here's the qc file of the model if that would help

$scale 1

$modelname "metalgate/metalgate.mdl"
$body Body "metalgate.smd"

$surfaceprop "metal"
$cdmaterials "models/metalgate"

$sequence idle "metalgate.smd" fps 30 ACT_IDLE 1

$collisionmodel "metalgate_collision.smd" { $concave }
Time is but a movement inside a stillness; as the hands of a clock seem to race against time
User avatar
DarkIceJack
Been Here A While
Been Here A While

Joined: Sat Nov 24, 2007 12:42 am
Location: Bluff NZ - The bottom of the World -

Re: Model with no shadow

Postby poisonic on Sat Feb 14, 2009 12:27 pm

how did you create the fence??? :D
if you used by example 16 box brushes..... your colission model should have 16 convex parts with each a own smooth material id by example mat. id 0 to 15.....

if you did not do this corectly you will end up with only one convex part.......
i shal do a nice test ok ;) for a fence that a bit looks like yours
[img:400]http://mypsn.eu.playstation.com/psn/profile/poisonic.png[/img]
User avatar
poisonic
Pheropod
Pheropod

Joined: Tue Jan 20, 2009 5:10 pm

Re: Model with no shadow

Postby poisonic on Sat Feb 14, 2009 12:30 pm

im curious to solve this puzz
le
[img:400]http://mypsn.eu.playstation.com/psn/profile/poisonic.png[/img]
User avatar
poisonic
Pheropod
Pheropod

Joined: Tue Jan 20, 2009 5:10 pm

Re: Model with no shadow

Postby kraid on Sat Feb 14, 2009 12:49 pm

Should it be a moving object? (dynamic) if not make it prop_static and use the -staticproppolys command for compiling. But if the CM was one pice, it would cast a dark shadow and you won't see anything of the light from behind the grate.
What's the lightmap gridsize for the faces where the shadow is supposed to be?
If it's to high, the shadows will blur and you won't notice them.
And it also depends on the light source, if it's to far away, having a wrong angle or is to weak it will blur shadows too.
For me it looks as if the light sources are pointed to the floor and the light which shines into the room is some kind of bounced (radiostiy) lightning.
Try pointing a strong light straight towards the grate and compile again. well, might be not the effect you are aiming for, but it will make sure if the grate is able to cast shadows.
Goldeneye Source v4.2.3
get it now and play for FREE!!!
http://www.goldeneyesource.net
kraid
Been Here A While
Been Here A While

Joined: Thu Jan 22, 2009 12:09 pm

Re: Model with no shadow

Postby Spike on Sat Feb 14, 2009 1:06 pm

decreasse lightmaps of the room, it will make shadows sharper and probably it'll work
User avatar
Spike
May Contain Skills
May Contain Skills

Joined: Wed Sep 17, 2008 7:10 pm

Re: Model with no shadow

Postby poisonic on Sat Feb 14, 2009 3:10 pm

http://i249.photobucket.com/albums/gg209/poisonic77/fenceshadowcast.jpg
my try :P i see a shadow on the floor do you see it too?

kind regards

Poisonic
[img:400]http://mypsn.eu.playstation.com/psn/profile/poisonic.png[/img]
User avatar
poisonic
Pheropod
Pheropod

Joined: Tue Jan 20, 2009 5:10 pm

Re: Model with no shadow

Postby poisonic on Sat Feb 14, 2009 3:36 pm

[img:400]http://mypsn.eu.playstation.com/psn/profile/poisonic.png[/img]
User avatar
poisonic
Pheropod
Pheropod

Joined: Tue Jan 20, 2009 5:10 pm

Re: Model with no shadow

Postby poisonic on Sat Feb 14, 2009 4:00 pm

lol spike was right againhttp://i249.photobucket.com/albums/gg209/poisonic77/fence4.jpg
select the face that recieves the shadow of the fence ant then press shift+a and change the lightmap scale to a lower value i used in this picture 2
[img:400]http://mypsn.eu.playstation.com/psn/profile/poisonic.png[/img]
User avatar
poisonic
Pheropod
Pheropod

Joined: Tue Jan 20, 2009 5:10 pm

Re: Model with no shadow

Postby poisonic on Sat Feb 14, 2009 4:28 pm

http://i249.photobucket.com/albums/gg209/poisonic77/fencemoreyouridea.jpg
sorry for oveflowing your topic now i did a test more in your situation
note my model uses 17 convex parts with a diverent material id to cast the shadow in half live 2 deathmatch.... sourcecore 1
[img:400]http://mypsn.eu.playstation.com/psn/profile/poisonic.png[/img]
User avatar
poisonic
Pheropod
Pheropod

Joined: Tue Jan 20, 2009 5:10 pm
